Applications
Ideal for drive shaft manufacturing in automobiles, ships, and heavy industrial equipment

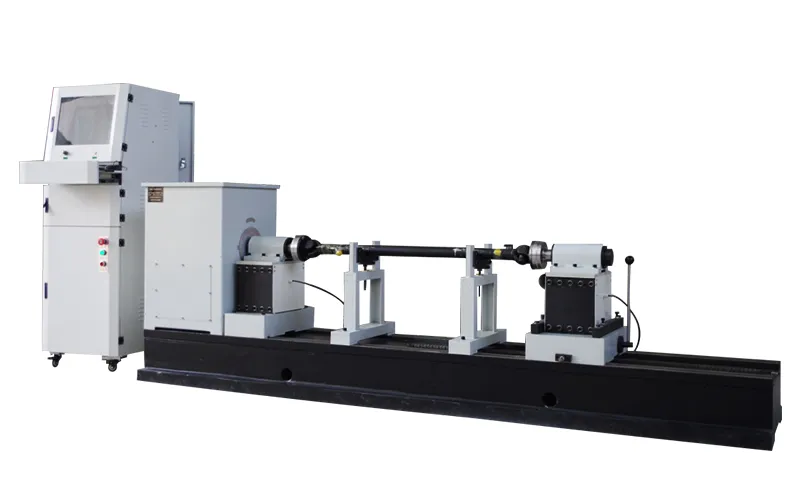

For industries such as shipbuilding and steel manufacturing achieving optimal balance in heavy-duty drive shafts is an important task. This horizontal balancing machine, built for the precise balancing of large-scale drive shafts, adapts easily to different connection types through interchangeable fixtures. Whether used in hard-bearing or soft-bearing configurations, the system accommodates a range of applications. For more demanding projects, customized models can handle drive shafts up to 3 tons. The drive shaft balancer length, along with its fixtures, can also be tailored to meet specific balancing requirements, ensuring reliability across various sectors.
Technical Specifications
| Model | YDW-2000A |
| Max. shaft weight (kg) | 2000 |
| Drive shaft alignment method | Single section double-sided alignment |
| Supporting structure | Rigid bearing |
| Max. workpiece length | 3500mm |
| Bed length | 5300mm |
| Balancing speed | 800-1000r/min |
| Min. achievable residual unbalance | ≤20gmm/kg |
| Unbalance reduction ratio | ≥85% |
| Motor power | 11kW |
